Forscan for 2022

[Fozzy]

I changed the tire size on my F-150 Tremor and it was 0.5 mph off to the slow side, super happy with it. I was like that for two years. Had an over the air update and jacked the entire truck up. Ford had it for 6 months trying to figure out what was wrong. They didn't think any of the ForScan changes would affect anything. Replaced modules and refreshed everything. Only thing that fixed it was getting rid of the tire size change, DRL change and reprograming everything back to stock. It affected almost every system, even the ones not related the actual modules changed in ForScan. The engineer and programers both said they have had serious trouble fixing some of the programing issues caused by ForScan users. The ON/OFF changes are not part of the problem. But when you mess with the ranged values. Is the Superduty prone to this problem? I think I am going to skip the ForScan and do the module that goes behind the dash if the speed is to far off. I was 11% off going to 37;s on my F150. I had to change a few lines of code and reset the TCM and a few other things. Been so long I can't remember. It worked and the OTA jacked everything up.



[Cux211]

You may have received an over the air software update that affected/overwrote some of the modules (BCM, APIM, etc)

Ok thanks didn’t even think of that, do you know off hand where the seat belt minder and triple ding is, BCM maybe? I can’t remember it’s been 2.5 years



[HeavyAssault]

Triple ding ?? Open door is in the IPC, seat belt chimes is in IPC as well.



[Cux211]

Triple ding ?? Open door is in the IPC, seat belt chimes is in IPC as well.

Don’t remember what it’s called but that stupid doo doo doo sound when you first start the truck or if the door is open when running, anyway thanks



[HeavyAssault]

Okay....which is it??



[Cux211]

Okay....which is it??

I’m confused I don’t know what you’re askin me, the seat belt chime is back and the stupid doo doo doo thing that it does on initial start up and when door is open (same sound) for start up and door open seat belt minder is a different sound



[HeavyAssault]

@Cux211 : It was a little humor with the doo doo doo references.

Either way here's the spreadsheet link, you might be able to do with with the Plain English menus.

ForScan 2020-22 Super Duty

docs.google.com



[Cux211]

@Cux211 : It was a little humor with the doo doo doo references.

Either way here's the spreadsheet link, you might be able to do with with the Plain English menus.

ForScan 2020-22 Super Duty

docs.google.com

lol sorry I’m one click away from computer illiteracy, I do remember everything I did was in plain English I won’t mess with the coding end of things I’m to dumb for that haha, thanks for the link



[Optimus🤖]

I’m confused I don’t know what you’re askin me, the seat belt chime is back and the stupid doo doo doo thing that it does on initial start up and when door is open (same sound) for start up and door open seat belt minder is a different sound

Okay....which is it??

I don't know if it's "doo doo doo" though .



[HeavyAssault]

I don't know if it's "doo doo doo" though .

More dah dah dah for sure. Alas I digress to each their own.



[Cux211]

I don't know if it's "doo doo doo" though .

Yeah whatever the hell that is lol I don’t know why but that cuts right through me



[volintejas]

Need a bit of an assist with Forscan (2022 6.7 Platinum) if anyone has some info. Basically, I have enabled unreal engine, climate bar, seats temp, heated steering control on my Sync 4 display but now want to remove the climate bar (but keep unreal engine enabled). I have, of course, backups to revert to but I have made other changes in Forscan and would rather just change this setting vs installing a backup and reworking some other settings.

My current APIM setting for the climate control bar at the bottom of the screen is below. Does anyone have the factory setting to revert? I believe I only need the highlighted digit below.

7D0-02-02

0402

00D8

08C1

Follow up (in case its needed) - I may need the factory settings for the seat temp control and steering wheel heat buttons so these would be greatly appreciated as well!

Seat temp button:

7D0-02-01

0406

5A0A

0048

Steering wheel button:

7D0-02-01

0406

5A0A

0048



[ZooDad]

Need a bit of an assist with Forscan (2022 6.7 Platinum) if anyone has some info. Basically, I have enabled unreal engine, climate bar, seats temp, heated steering control on my Sync 4 display but now want to remove the climate bar (but keep unreal engine enabled). I have, of course, backups to revert to but I have made other changes in Forscan and would rather just change this setting vs installing a backup and reworking some other settings.

My current APIM setting for the climate control bar at the bottom of the screen is below. Does anyone have the factory setting to revert? I believe I only need the highlighted digit below.

7D0-02-02

0402

00D8

08C1

Follow up (in case its needed) - I may need the factory settings for the seat temp control and steering wheel heat buttons so these would be greatly appreciated as well!

Seat temp button:

7D0-02-01

0406

5A0A

0048

Steering wheel button:

7D0-02-01

0406

5A0A

0048

@volintejas
If you don’t have a readable AsBuilt
Go to the AsBuilt download page scroll down to find your factory value. 22’s don’t automatically update to the mothership like 23+ do.

ZooDad



[Wildcat82]

I'm finding several posts on the unreal engine but I don't see the changes incorporated into the spreadsheet on the original post. Are there plans to incorporate them into the spreadsheet? Perhaps I just missed them?



[Optimus🤖]

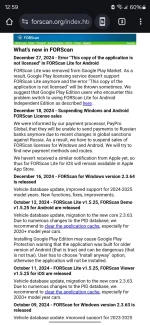

Anyone read about FORScan no longer issuing/renewing licenses due to sanctions against Russia? If you didn't renew on December 17th, you're SOL:

What's new



[Modman]

Anyone read about FORScan no longer issuing/renewing licenses due to sanctions against Russia? If you didn't renew on December 17th, you're SOL:

What's new

That's unfortunate. I believe the Windows Extended license is the only way to access the configuration and programming application.



[Optimus🤖]

That's unfortunate. I believe the Windows Extended license is the only way to access the configuration and programming application.

Probably. My truck is at the shop getting a facelift and the guy was angry that he can't do anymore stuff. His renewal was January 1st.



[volintejas]

@volintejas
If you don’t have a readable AsBuilt
Go to the AsBuilt download page scroll down to find your factory value. 22’s don’t automatically update to the mothership like 23+ do.

ZooDad

I’m afraid they do...or at least my '22 was updated. My values on the Motorcraftservice.com/asbuilt data page match my current values for these (and other) changed settings.

But I can read it from my back up file(s) so I think I'm all set.



[volintejas]

That's unfortunate. I believe the Windows Extended license is the only way to access the configuration and programming application.

You can still get a free 2 month trail of the extended license through the Forscan website. I did that a couple of days ago to make some changes.



[Modman]

You can still get a free 2 month trail of the extended license through the Forscan website. I did that a couple of days ago to make some changes.

Good to know! Wasn't sure if that was going to be decommissioned or not. Glad we still have options.
