UTT with PTBA - how does it turn the wheel?

[MikeMakesWhiskey]

Curious, on a truck with the UTT with PTBA, but not with adaptive steering, are there motors or hydraulic solenoids or what? If someone has the factory service manual, maybe there is something in the 'principle of operation' section section.



[ccw]

Curious, on a truck with the UTT with PTBA, but not with adaptive steering, are there motors or hydraulic solenoids or what? If someone has the factory service manual, maybe there is something in the 'principle of operation' section section.

Check out this video that shows the part that does it. It’s an electric motor on the steering shaft in the engine bay.

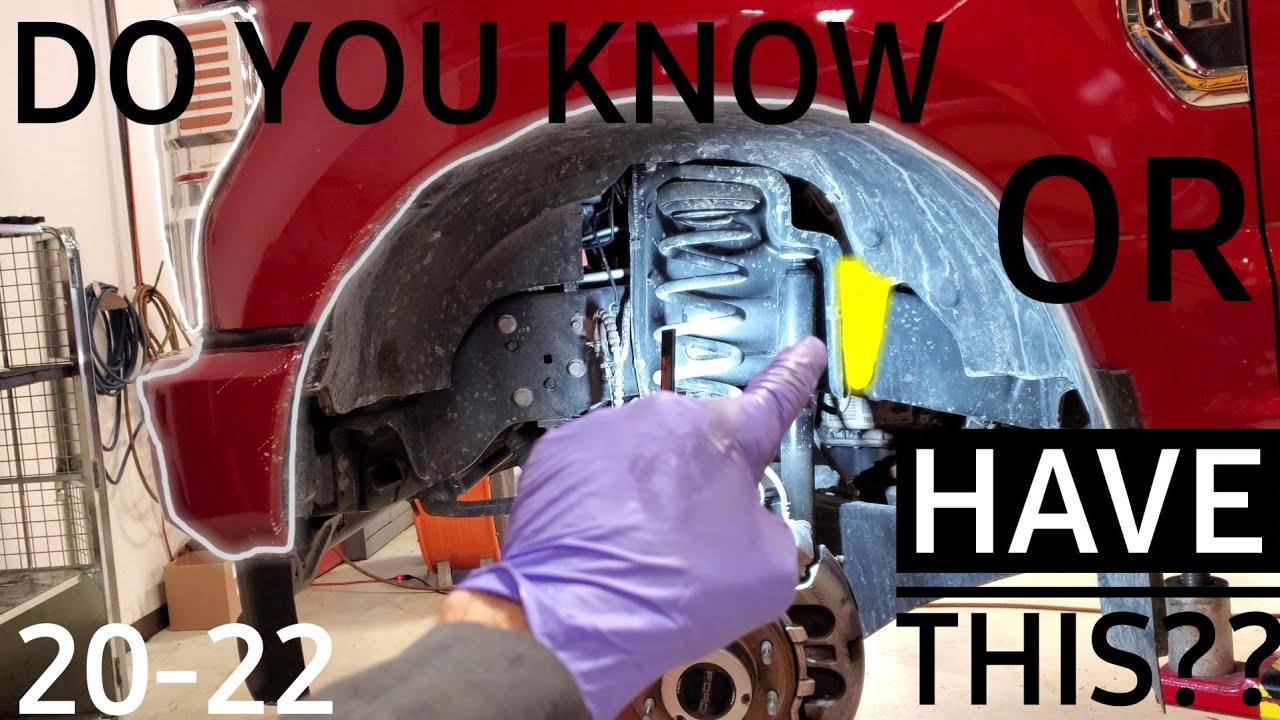

What is this THING in my wheel well?? 20-22 Ford F250 F350 F450 EPAS - Death Wobble Cure???

Owners whose trucks have the Electric Power Assisted Steering set up, may not know the up n' up about what this thing does. Welcome back FAMILY!!!!! So glad ...

m.youtube.com



[MikeMakesWhiskey]

Check out this video that shows the part that does it. It’s an electric motor on the steering shaft in the engine bay.

What is this THING in my wheel well?? 20-22 Ford F250 F350 F450 EPAS - Death Wobble Cure???

Owners whose trucks have the Electric Power Assisted Steering set up, may not know the up n' up about what this thing does. Welcome back FAMILY!!!!! So glad ...

m.youtube.com

Thanks! Looks like a motor actuator on the steering shaft... It looks like is is primarily part of the "AdvanceTrac® with Roll Stability Control® (RSC)." and then on top of that you can add the UTT Pro with BackupAssist and/or A.S.



[ccw]

Thanks! Looks like a motor actuator on the steering shaft... It looks like is is primarily part of the "AdvanceTrac® with Roll Stability Control® (RSC)." and then on top of that you can add the UTT Pro with BackupAssist and/or A.S.

Yep! Pretty slick that they were able to use the same part for both purposes.
