Drivers side rear seat back fold down?

Rock Taxi

Founding Member
Joined
Sep 14, 2019
Messages
460
Reaction Points
725
Location
Dallas, TX
Current Ride
2020 F350 6.7l King Ranch Tremor
Current Ride #2
2004 and 2008 Jeep Wrangler Unlimited
I have looked at videos and have tried to get my Popeye arms behind the seat, but I cannot feel the nub that releases the seat. Anyone have any 2020 picture to validate that the 2017-19 videos I have found are still accurate on the release mechanism?

Ed


Mgmack

Founding Member
Joined
Jul 4, 2020
Messages
49
Reaction Points
85
Location
West Palm Beach, Florida
Military
USMC and Army, retired
Current Ride
2020 F-250 Lariat Sport Tremor 6.7L
Current Ride #2
2016 Subaru Outback Limited 3.6R (wife’s car)
Same issue here, can’t get my sausage fingers on the release to lower the seat back.


StoneGreyTremor

Tremor Buff
Joined
Jun 2, 2020
Messages
49
Reaction Points
53
Location
LA
Current Ride
2020 Tremor
Current Ride #2
2019 Mustang GT PP@
Get you a wrench, 1/2” or whatever size is long enough to reach the little bolt thing that pokes out on the left side of the latch. Pull up and the seat will fold down.
also can go to built rite industries and watch their install video and see how he does it.

OP
Rock Taxi

Rock Taxi

Founding Member
Joined
Sep 14, 2019
Messages
460
Reaction Points
725
Location
Dallas, TX
Current Ride
2020 F350 6.7l King Ranch Tremor
Current Ride #2
2004 and 2008 Jeep Wrangler Unlimited
I found the issue. My forearms are too big to get far enough down to feel the latch I need to get a wrench on to release the seat back. I got a slightly smaller neighbor and they felt the nub immediately, and could get a wrench on it, and it opened immediately.

It is important to note, the release is in-between the brackets, not outside of the brackets towards the middle of the truck like you might assume from the picture.

It's the same as previous years as the photo below shows. I will share a bit of disappointment - with the BO sound system and subwoofer, there isn't much room back there for more stuff. I figure my winch controllers will live back there, and maybe a few other infrequently used odds and ends.

Ed



JC_Tremor

Toasty
Joined
May 30, 2020
Messages
981
Reaction Points
921
Location
Tejas
Military
USN
Current Ride
Focus ST
Yeah it's a b1tch getting a finger back there. I didnt know that the B&O system/sub took up all the room.


Cliff1620

Tremor Fanatic
Joined
Jul 16, 2020
Messages
173
Reaction Points
309
Location
SoCal
Military
USMC 2001-2005
Current Ride
2020 F250 Tremor
Current Ride #2
2012 Audi R8 V10
OP
Rock Taxi

Rock Taxi

Founding Member
Joined
Sep 14, 2019
Messages
460
Reaction Points
725
Location
Dallas, TX
Current Ride
2020 F350 6.7l King Ranch Tremor
Current Ride #2
2004 and 2008 Jeep Wrangler Unlimited
Save yourself the headache and buy this. I’ve have it for 3 years on three different trucks. Make opening the seat as simple as the passenger side.


Ordered. I can't carry skinny armed neighbors everywhere I go.

Ed


Mach'er

Race Red Slappy
Joined
Jul 10, 2020
Messages
350
Reaction Points
735
Location
SE Michigan
Military
Army Veteran
Current Ride
20MY Tremor (250 Lariat)

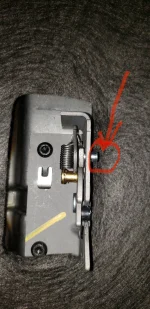

Thanks for the picture @Rock Taxi. Is this the nub that needs to be pulled? Pulled UP?

And is that nub on the drivers side of the bracket (I can't tell which side is up in the picture)? Other than finding skinny arms, you're making this easy for the rest of us. Time to order a red Built Rite thing.


Attachments

  • F0095C5A-D2D3-44F9-B0EE-48E863E83225.jpeg
    343.3 KB · Views: 55
OP
Rock Taxi

Rock Taxi

Founding Member
Joined
Sep 14, 2019
Messages
460
Reaction Points
725
Location
Dallas, TX
Current Ride
2020 F350 6.7l King Ranch Tremor
Current Ride #2
2004 and 2008 Jeep Wrangler Unlimited
Yes, that is the piece that needs to be pulled up - the opposite direction of the red arrow - or towards the headrest.

It is in the middle of the brackets it clips into, towards the middle of the truck (or passenger side).

Ed


Mach'er

Race Red Slappy
Joined
Jul 10, 2020
Messages
350
Reaction Points
735
Location
SE Michigan
Military
Army Veteran
Current Ride
20MY Tremor (250 Lariat)
Yes, that is the piece that needs to be pulled up - the opposite direction of the red arrow - or towards the headrest.

It is in the middle of the brackets it clips into, towards the middle of the truck (or passenger side).

Ed
Cool. Thanks!


Bill

Founding Member
Joined
Jun 17, 2020
Messages
145
Reaction Points
263
Location
Parrish, Fl
Current Ride
2020 F-250 6.7L Tremor
Current Ride #2
2020 Dodge Challenger Wide Body Scat Pack 2018 John Deere 5065E Tractor
Like others have said, order the part from BuiltRight. It’s easy to install and a hell of a lot easier to drop the seat than without it.

As far as without it, I saw it mentioned above ... just use a box end wrench to grab the catch. If you raise the bottom of the seat slightly it will actually pull the back away from the cab and grant a little more room.


Mgmack

Founding Member
Joined
Jul 4, 2020
Messages
49
Reaction Points
85
Location
West Palm Beach, Florida
Military
USMC and Army, retired
Current Ride
2020 F-250 Lariat Sport Tremor 6.7L
Current Ride #2
2016 Subaru Outback Limited 3.6R (wife’s car)
Here is what it looks like.

Ed

View attachment 3667

Thanks for the photos and description. I was able to get it with a little effort once I knew what I was feeling for blindly.
BuiltRight release latch is now installed. But like your photo showed, not a lot of extra room with the amp and sub back there.


erikswedberg

Tremor Fanatic
Joined
Jun 20, 2020
Messages
140
Reaction Points
164
Location
Houston, TX
Current Ride
F250 Tremor
I ordered and put this in, too. It just seems like a reasonable thing to want to access that area. What if you dropped something down there and needed to fish it out, or needed to clean some kind of mess?

One thing is, I found it difficult to get the seat to secure back to the latch once I had it opened. I had the best success with kinda placing the cross bar somewhere in the middle and slamming it, but it took like four tries. Is there some trick to this?


IceSoldier88

Founding Member
Joined
Jul 2, 2020
Messages
479
Reaction Points
359
Location
North Central NY
Military
Army
Current Ride
Velocity Blue F350 Diesel with Sport & Ultimate package
Current Ride #2
20 Explorer / 18 Indian Chieftain Limited / 19 Can-Am Defender XMR
First Responder
Volunteer Firefighter
For the built right seat release. Do i need 2(one for each side)


thevol

Tremor Fiend
Joined
Jul 22, 2020
Messages
387
Reaction Points
442
Location
GA
Current Ride
7.3 XLT Tremor
I ordered and put this in, too. It just seems like a reasonable thing to want to access that area. What if you dropped something down there and needed to fish it out, or needed to clean some kind of mess?

One thing is, I found it difficult to get the seat to secure back to the latch once I had it opened. I had the best success with kinda placing the cross bar somewhere in the middle and slamming it, but it took like four tries. Is there some trick to this?

Yea I had to slam mine really hard to get it to latch, there is an anti rattle plastic piece in the latch mechanism that makes it difficult. Probably wear down with use and get easier, its really not meant be be latched and unlatched often tho...
